Product features:
1.Support 0V charging 2.Disconnection detection function
3.Battery balance function 4.Discharge overcurrent detection function
5.Short circuit detection function 6.High-precision voltage detection function
7.Integrated N-MOSFET driver 8.Charge overcurrent detection function
9.Temperature detection function 10.3-stage discharge overcurrent detection
11.Low power consumption design 12.Support reverse connection of battery and charger

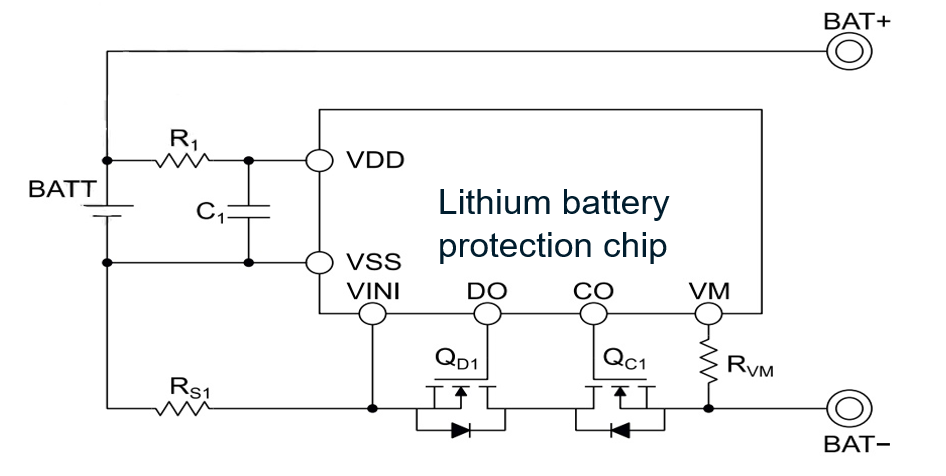

Lithium battery protection block diagram：
Products Recommended：
Item | Product Name | Part No | Brand |
1 | Single-cell lithium battery protection chip | TPB71703 | 3PEAK |
2 | Single-cell lithium battery protection chip | SIT8036 | Suntosemi |
3 | 2 strings of lithium battery protection chips | TMI4022 | Suntosemi |
4 | 3～4 series lithium battery protection chip | SIT8993 | Suntosemi |
5 | 3～4 series lithium battery protection chip | TMI4042 | Suntosemi |
6 | 4～5 series lithium battery protection chip | TMI4051 | Suntosemi |
7 | 6～7 series lithium battery protection chip | TMI4071 | Suntosemi |
8 | 7～10 series lithium battery protection chip | TMI4101 | TMI |
9 | 11～14 series lithium battery protection chip | TMI4151 | TMI |
10 | MOS | DMN12M7UCA10 | DIODES |
11 | MOS | DMN1002UCA6 | DIODES |
Item | Product Name | Part No | Brand |
12 | MOS | DMN1003UCA6 | DIODES |
13 | MOS | DMN1006UCA6 | DIODES |
14 | MOS | DMN2036UCB4 | DIODES |
15 | MOS | DMN2008LFU | DIODES |
16 | MOS | DMN2014LHAB | DIODES |
17 | MOS | DMN2016LHAB | DIODES |
18 | MOS | DMN2028UFDH | DIODES |
19 | MOS | DMN2022UNS | DIODES |
20 | MOS | DMN2016UTS | DIODES |
21 | MOS | DMN2019UTS | DIODES |
22 | MOS | DMN3008SFG | DIODES |
Item | Product Name | Part No | Brand |
23 | MOS | DMN3009LFVW | DIODES |
24 | MOS | DMT32M5LFG | DIODES |
25 | MOS | DMN3006SCA6 | DIODES |
26 | MOS | CRSS028N10N | Crmicro |
27 | MOS | CRSS037N10N | Crmicro |
28 | MOS | CRSS042N10N | Crmicro |
29 | MOS | CRSS057N10N | Crmicro |
